Wafer Slurry Knife Gate Valve
Model GKS
Size 2”-24”Bigger size on request
Material: Ductile iron, Stai nless Steel, Duplex, Hastelloy, and Titanium , others
| Quantity: | |
|---|---|
GKS673
GUANLI VALVE
DN50-DN600 2"-24"

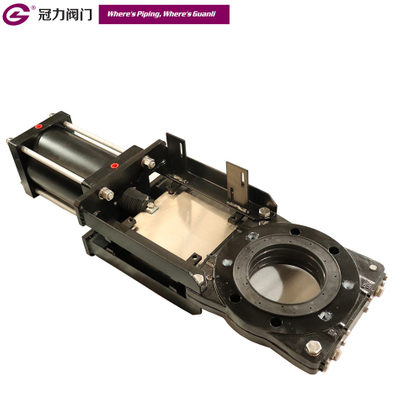

Wafer Slurry Knife Gate Valve
Guanli Model GKS built with a cast body and features a heavy-duty stainless steel knife. Removable seats on both sides of the gate provide a bi-directional bubble tight seal, with no metal parts in contact with the slurry.
Heavy-duty cast body
Heavy-duty yoke frame
External epoxy coated
Lubrication ports
Flushing ports
Open/closed lockout brackets standard
Standard connection:
ANSI B16.5 (class 150) and EN PN10 and AS2129
Other connections available on request
Material Options
Knife Material- SS316, SS2205, Others
Natural Gum Rubber Sleeves
EPDM Sleeves
Driven types
Manual-Handwheel &Bevel gear
Electric Actuated
Hydraulic Actuated
Bareshaft
Pneumatic Cylinder-Double Acting Pneumatic
Acceissories- Limit switches, Proximate switches, Solenoid, Filter&Regulator,
SS304 Tubes&fittings
Customized Design on request
Safety covers on yoke frame
Spring Return Pneumatic Cylinder
Fail safe system
