Model GKA
Size 2”-24” Bigger size on request
Material: Ductile iron, Stainless Steel, Duplex, Hastelloy, and Titanium , others
Guanli Model GKA is built with a cast body and features a heavy-duty stainless steel knife. Removable seats on both sides of the gate provide a bi-directional bubble tight seal, with no metal parts in contact with the slurry.
| Quantity: | |
|---|---|
GKA
GUANLI VALVE
DN50-DN600

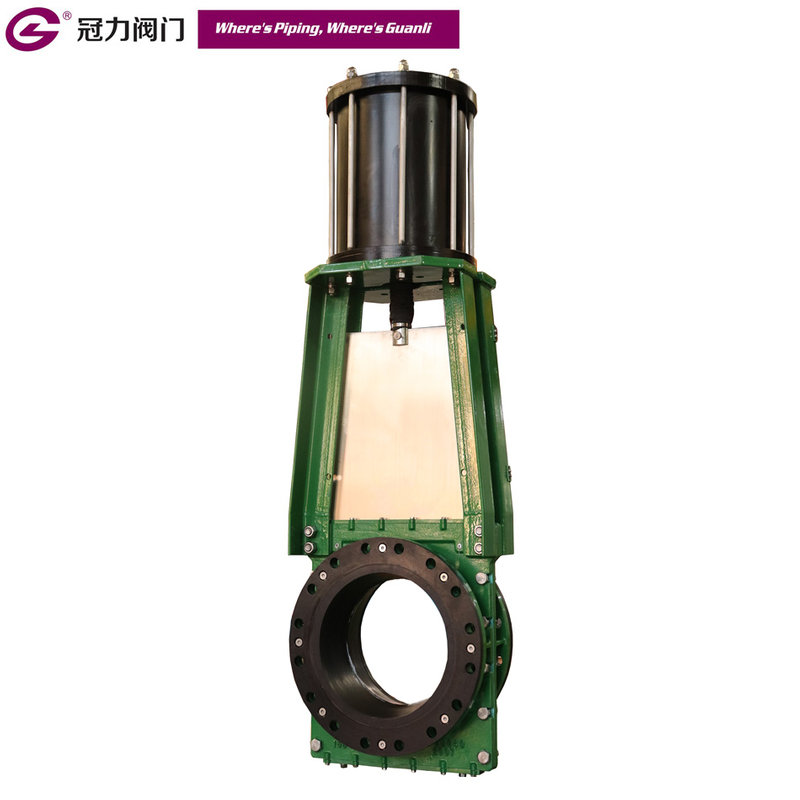

Bidirectional Knife Gate Valve
Model GKA
Size 2”-24” Bigger size on request
Material: Ductile iron, Stainless Steel, Duplex, Hastelloy, and Titanium , others
Guanli Model GKA is built with a cast body and features a heavy-duty stainless steel knife. Removable seats on both sides of the gate provide a bi-directional bubble tight seal, with no metal parts in contact with the slurry.
GKA Features
Double seat design for heavy duty slurry service
Easily replaceable sleeves
When open, the knife-gate is fully withdrawn from the slurry flow
No metal parts in contact with the flowing slurry
External epoxy coated
Easily adapted to suit most actuators
Low maintenance requirements
No seat cavity where solids can collect and prevent full gate closure
Standard connection:
ANSI B16.5 (class 150) and EN PN10
Other connections available on request
Sleeves material available
Natural Gum Rubber
EPDM
Material Options
Knife Material- SS316, SS2205, Others
Driven types
Manual-Handwheel &Bevel gear
Electric Actuated
Hydraulic Actuated
Bareshaft
Pneumatic Cylinder-Double Acting Pneumatic
Acceissories- Limit switches, Proximate switches, Solenoid, Filter&Regulator,
SS304 Tubes&fittings
Customized Design on request
Spring Return Pneumatic Cylinder
Fail safe system
Painting color on request
