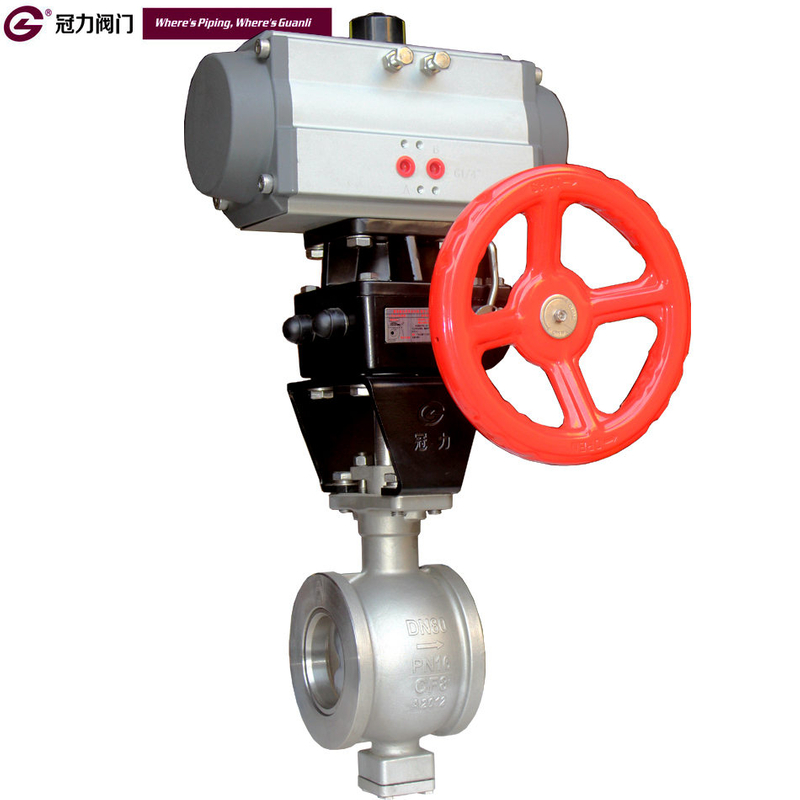

Flangeless Segmented Ball valve

Segmented V ball Control Valve
Actuator Type: Double Acting Pneumatic Actuator
  • GVU673 PN16/PN25 Class150


  • 1/2"-10" DN15-DN250

The guanli model GVU segmented ball valve is designed for throttling or on-off applications in various industries including pulp & paper, chemical, power, oil & gas, and mining.


Valve Body

One-piece body design which offers greater rigidity against fluctuating pipe loads.

Eliminates the leak path associated with two piece body designs.



Available with a metal seat and soft seat.

Directs the flow away from the sealing area.

Standard metal seat has hard-faced seat surface with Stellite overlay on 316 SS base material.


Standard flange connection:

EN PN10/PN16/PN25

ANSI B16.5 Class150


Driven types

Worm Gear


Pneumatic actuated

Electric Actuated


Pneumatic Cylinder-Double Acting Pneumatic

Acceissories- Limit switches, Solenoid, Filter&Regulator,postionor

SS304 Tubes&fittings


Material Options

Ball coating Material- Chrome, Tungsten Carbide, Others

Soft seat: PTFE, RPTFE

Mounting pad:A36 with FBE coating, SS mounting



Customized Design on request

High temperature structure on request.

Spring Return Pneumatic Cylinder

Fail safe system
