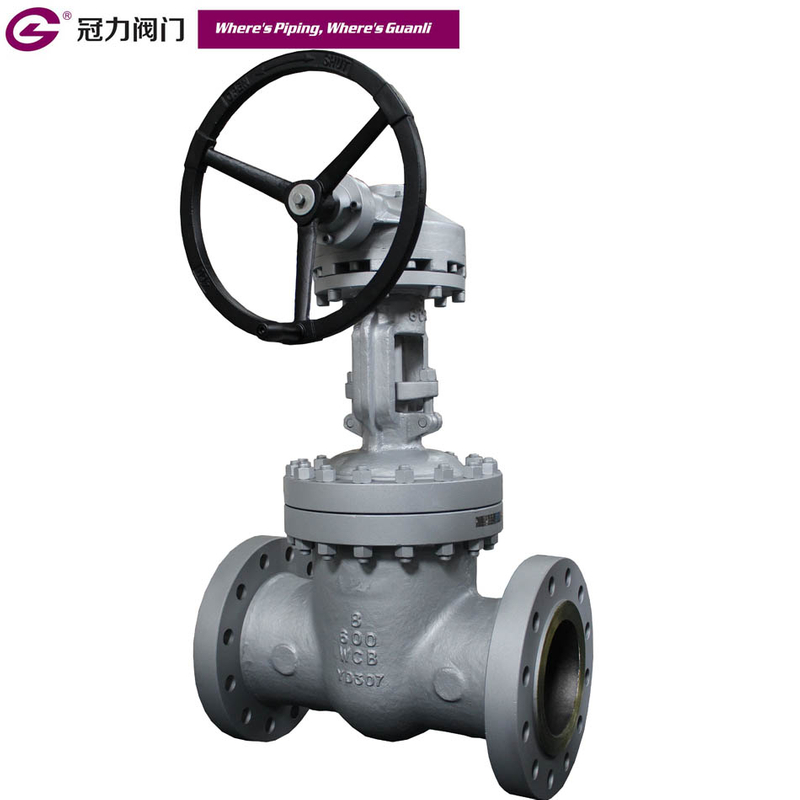

API 600 Gate Valve

API 600 Gate valve use in natural gas, crude oil, refined products transmission lines as well as in many other general industrial and oil & gas applications.

Standard Compliance

• basic design according to API 600

• face to face according to ANSI B16.10

• flanges according to ANSI B16.5

• flange facings: 0,06" raised face;

• pressure - temperature ratings according to ASME B16.34

• testing according to API 598

• trim standard: no. 1 main sealing 13% Cr / 13% Cr.

•


On request

• other basic design according to API 6D

• other shell materials (Carbon steel, Stainless steel, Monel, Duplex, Inconel)

• other trim

• other flange facings according to ANSI B 16.5 or B/W ends to ANSI B16.25

• other type gasket body - bonnet

• by-pass

• open and shut indicator

• electric actuator operation

• manufactured according to specification NACE MR 0175 for hydrogen sulphide and sour gas service

• Other trims

• Fire safe
